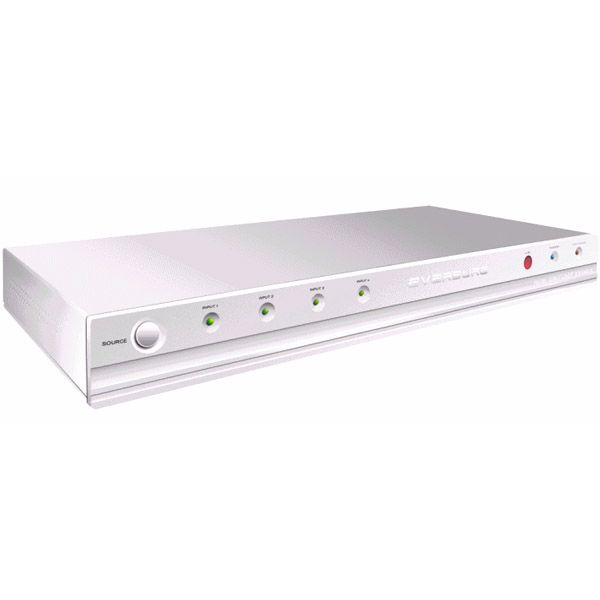

Product Name : HDMI SWITCHER
MODEL NO:SW0401A (WHITE)

Description :
    Features
    1. Switches easily between four HDMI sources
    2. Supports all digit TV specification 480p, 720p, 1080i and 1080p
    3. Fully compatible with VESA specification VGA, SVGA, XGA, SXGA and UXGA
    4. No software required, just simply plug & play
    5. Signal enhanced design, supports long length cable application
    6. Auxiliary RS232 interface
    7. Resume function: SW0401A memorized last selection automatically

    How To Connect
    1. Connect HDMI cable from signal source (ex: DVd or STB) to the HDMI input of switcher
    2. Connect HDMI cable from display (ex: HDTV or Projector) to the HDMI input of switcher
    3. Connect the power adaptor to the home wall receptacle
    4. Connect the power adaptor to the power input of the switcher then turn the switcher's power on
    5. Turn on the power of display and then the power of signal source in sequence

    Model : SW0401A
    Format Supported : VGA / SVGA / XGA / SXGA / UXGA / 480p / 720p / 1080i / 1080p
    Data Rate : 1.65 Gbps
    Frequency : 60Hz
    Inputs : HDMI ype A (19p) x 4 , DC Power jack x 1
    Output : HDMI Type A (19p) x 1
    Switching Control : Panel push button or IR remote control
    Power requirement : Output: DC 5V 2A , Inputs: AC 100~240V 47~63Hz
    Dimension : 431.8(W) x 200(D) x 44.45(H) (mm)
    Net Weight : 2.35 (Kg)
